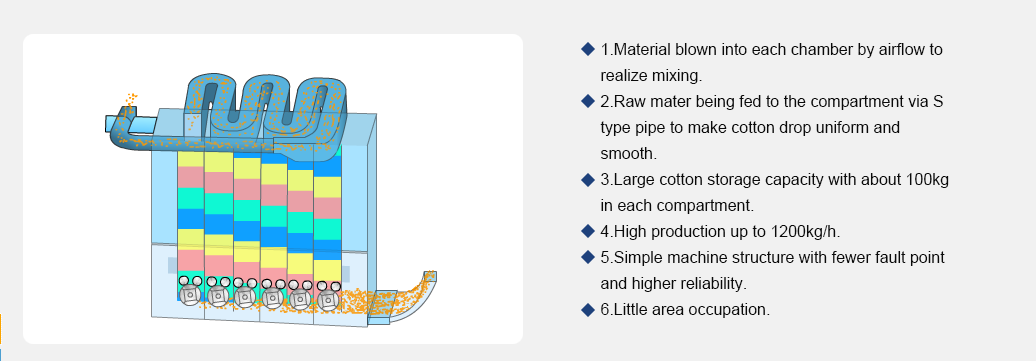

The machine is suitable for cotton, chemical fiber or its blends.Under the action of airflow, material entered into this machine is uniformly blown to each compartment to form air stream mixing. The different speed mixing of JWF1027 is realized through the different output speed of each roller at teh bottom of every compartment .Meanwhile large cotton storage is conductive to stable cotton supply of the follow-up equipment.
Raw material being fed to the compartment via S type pipe to make cotton drop uniform and smooth, Large cotton storage capacity with about 100kg in each compartment,High production up to 1200kg/h.Simple machine structure with fewer fault point and higher reliability,Little area occupation
Technical Parameters | |
---|---|
Compartment | 4,6,8 |
Suitble material | Pure cotton, Chemical fiber and blends |
Working width | 1200mm |
Technical Parameters | |
---|---|
Feed roller dia | Φ180 |
Feed roller dia | Adjusted by inverters |
Beater dia | Φ330 |
Beater speed | 450,504,546 |
Working Performance
