The structure of six or eight hoppers makes the mixing evener and storage capacity bigger, Cotton transportation by the spiked lattice is controlled by the intellectual PID, ensuring the even,stable and continuous cotton supply. The speed of feeding lattice is controlled by the inverter, favorable for controlling the continuous feeding of the system, The whole machine is intellectually started and operated.The entrance fan is controlled by the machine itself, favorable foe energy conservation.

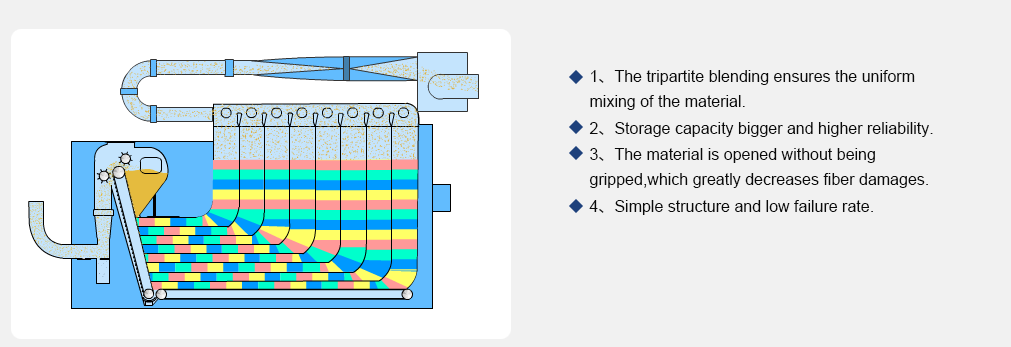

The tripartite blending ensures the uniform mixing of the material, The machine is used for blending cotton, chemical fiber or blends.After fiber is hopper in conveyed in 90° turn, achieving the second-round blending due to the distance difference. The excessive fiber is thrown into the blending room to attain fine mixture

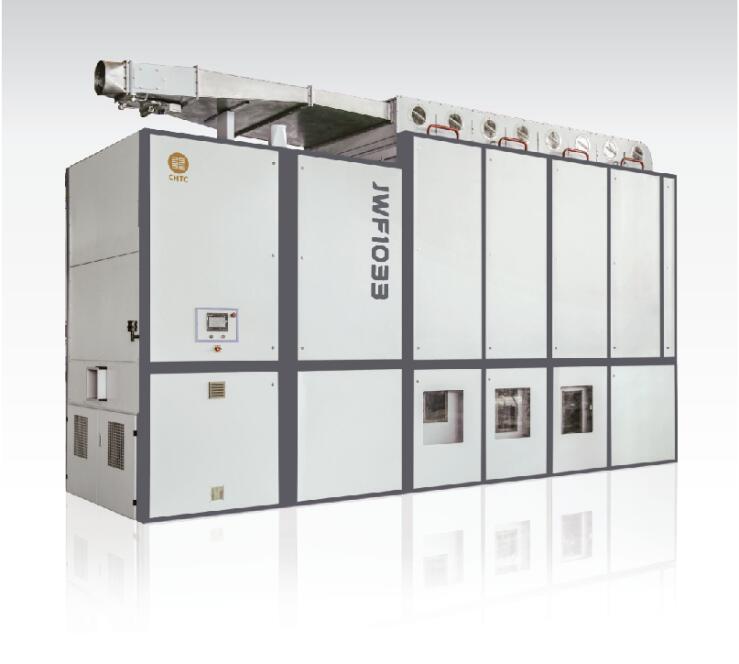

JWF1031/1033 Mutli-Mixer

Technical Features

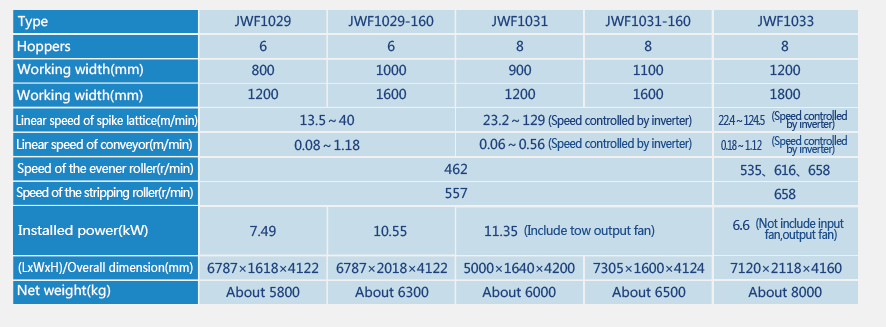

Technical Parameters
